Acoustic Fire Rated Door
The Acoustic Fire Rated Door is a metal door system designed with both fire insulation and sound reduction performance. It uses an all-steel structure with fire-resistant and acoustic filling materials, making it suitable for building areas that require reliable fire safety and controlled interior noise.
Key Features
- Integrated fire insulation and acoustic noise reduction performance
- All-steel structure with cold-formed high-quality steel plate
- Door leaf filled with non-combustible fire-resistant and sound insulation materials
- Single or double rabbet construction options
- High-quality stainless steel hardware
- Stable performance for safety-critical interior spaces
Product Overview
Fire Protection with Acoustic Control
This door combines fire insulation and sound reduction in one metal assembly, helping buildings meet both fire compartment and acoustic comfort requirements.
Steel Structure and Insulated Core
The door leaf is formed from quality cold-rolled steel and filled according to the required fire rating with non-combustible, fire-resistant, heat-insulating and sound-insulating materials.

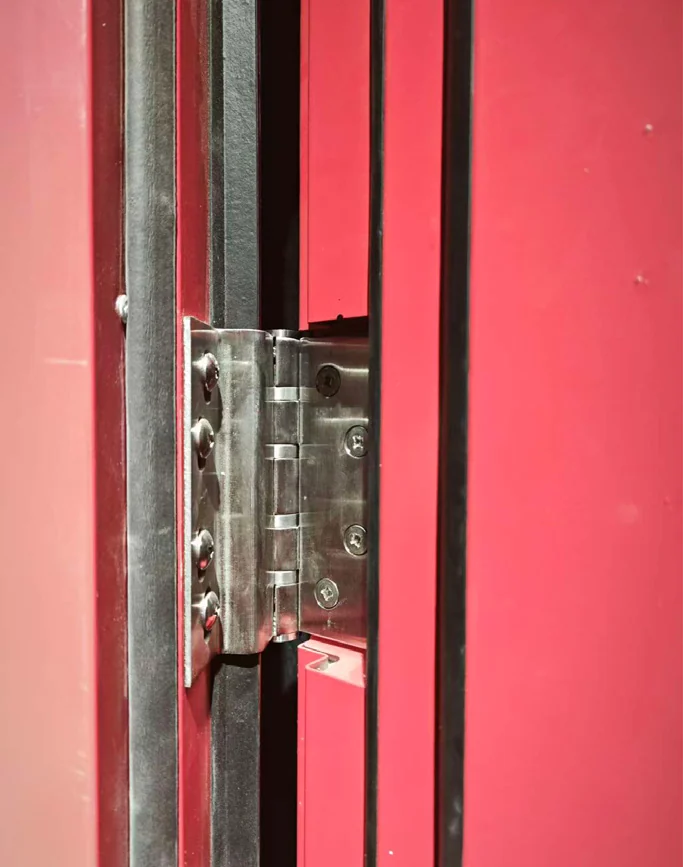

Reliable Hardware and Sealing
High-quality stainless steel hardware, rabbet construction and acoustic sealing details support stable daily use while improving fire, escape and sound insulation performance.
Applications
Conference rooms
Control rooms
Office buildings
Hotels
Hospitals
Building areas requiring both fire safety and acoustic control

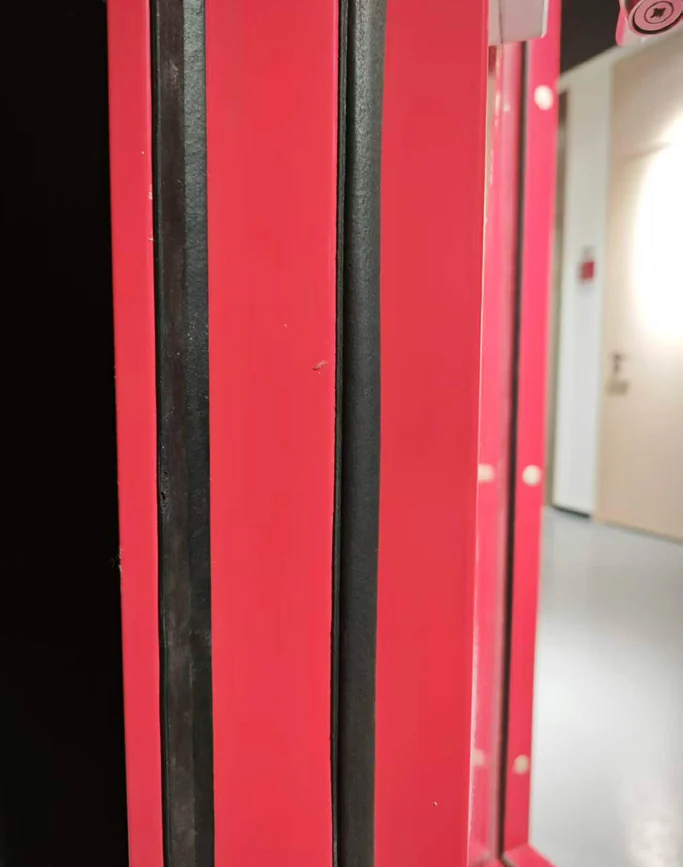

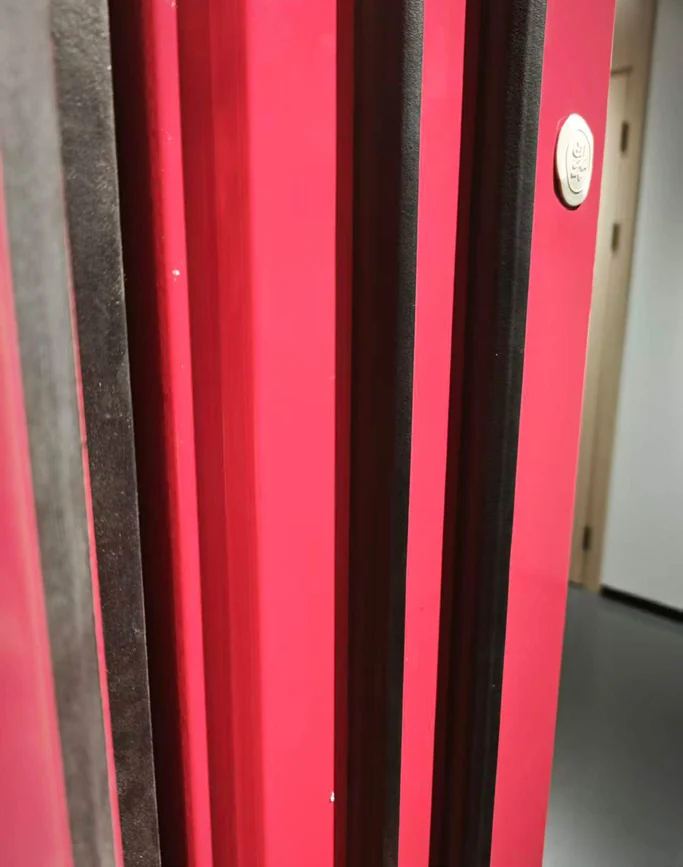

Product Views
Our Advantages
Combines fire protection, heat insulation and acoustic noise reduction
Suitable for spaces with higher sound control requirements
All-steel structure improves durability and security
Detailed sealing design supports acoustic and airtightness performance
Multiple panel thickness and finish options for project requirements
Technical Data
| Door Leaf Panel Thickness | 0.8mm / 1.2mm / 1.5mm |
| Frame Steel Thickness | 1.2mm / 1.5mm / 2.0mm |
| Door Leaf Thickness | 60mm / 70mm |
| Surface Finish | Galvanized steel electrostatic powder coating / transfer printing |
| Internal Filling | Fire-resistant filling material / acoustic felt |
| Hardware | High-quality stainless steel |
| Anti-theft Grade | Grade 3 |
| Fire Rating | Class A, A1.5h |
| Sound Insulation | Grade 3 |
| Airtightness | Positive pressure Grade 6, negative pressure Grade 6 |
| Watertightness | Grade 3 |
| Wind Pressure Resistance | Grade 5 |
| Thermal Insulation | Grade 5 |
Packaging
Standard export packaging according to door size, acoustic seal configuration and hardware set
