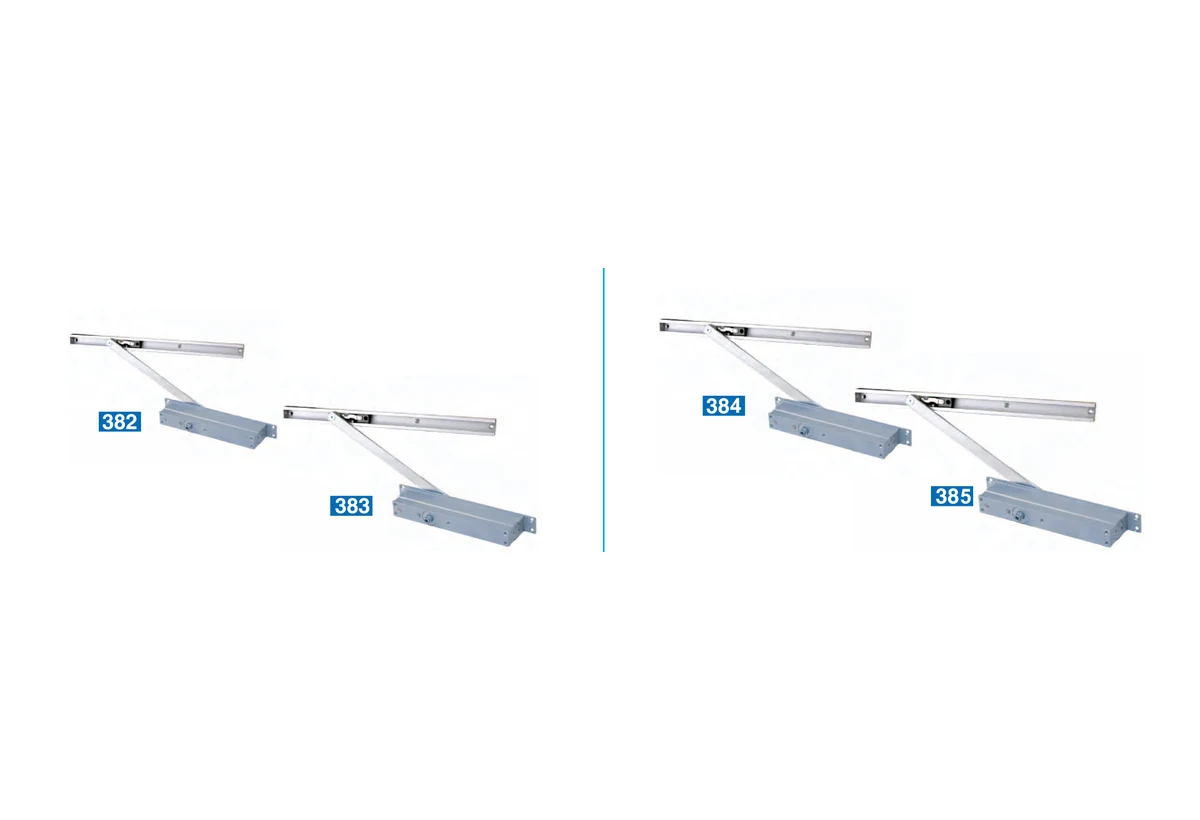

382 / 383 / 384 / 385 Concealed Door Closer Series
The 382 / 383 / 384 / 385 Concealed Door Closer Series is shown in the Tongguan catalog as concealed type door closer hardware for project doors. The series covers 800mm and 950mm maximum door leaf widths, door weight ranges from 30kg to 105kg, and concealed installation drawings for clean door hardware appearance.
What buyers need to know first
Hardware buyers usually compare door type, opening size, fire rating, finish and access-control compatibility before asking for price.
Concealed Model Range

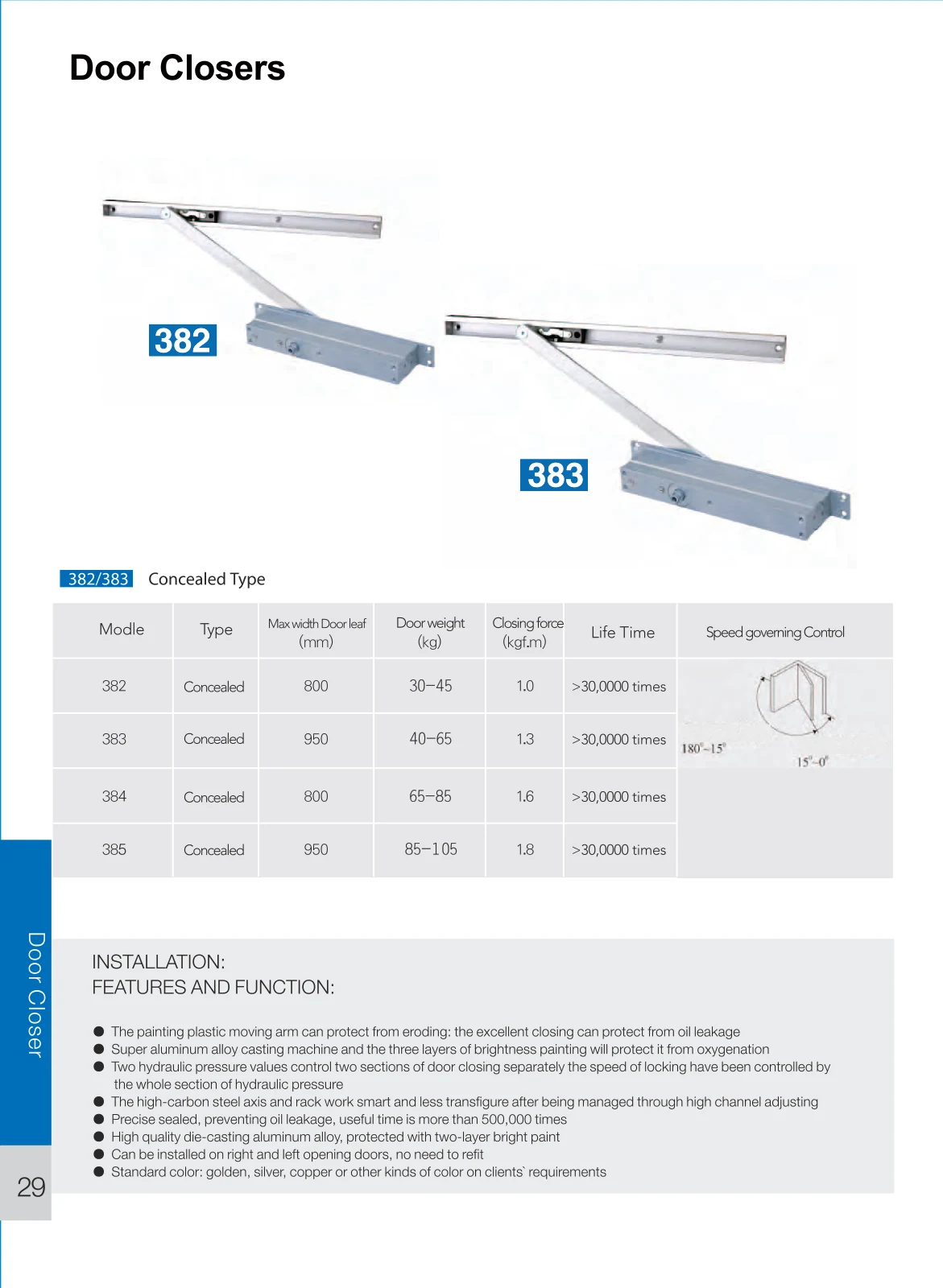

The catalog groups models 382, 383, 384 and 385 as concealed type door closers, with model selection based on maximum door leaf width, door weight and closing force.
Cleaner Door Appearance
The concealed closer layout places the closer body and arm system within the door and frame preparation, helping reduce visible surface hardware compared with ordinary surface-mounted closers.
Installation Drawing Support

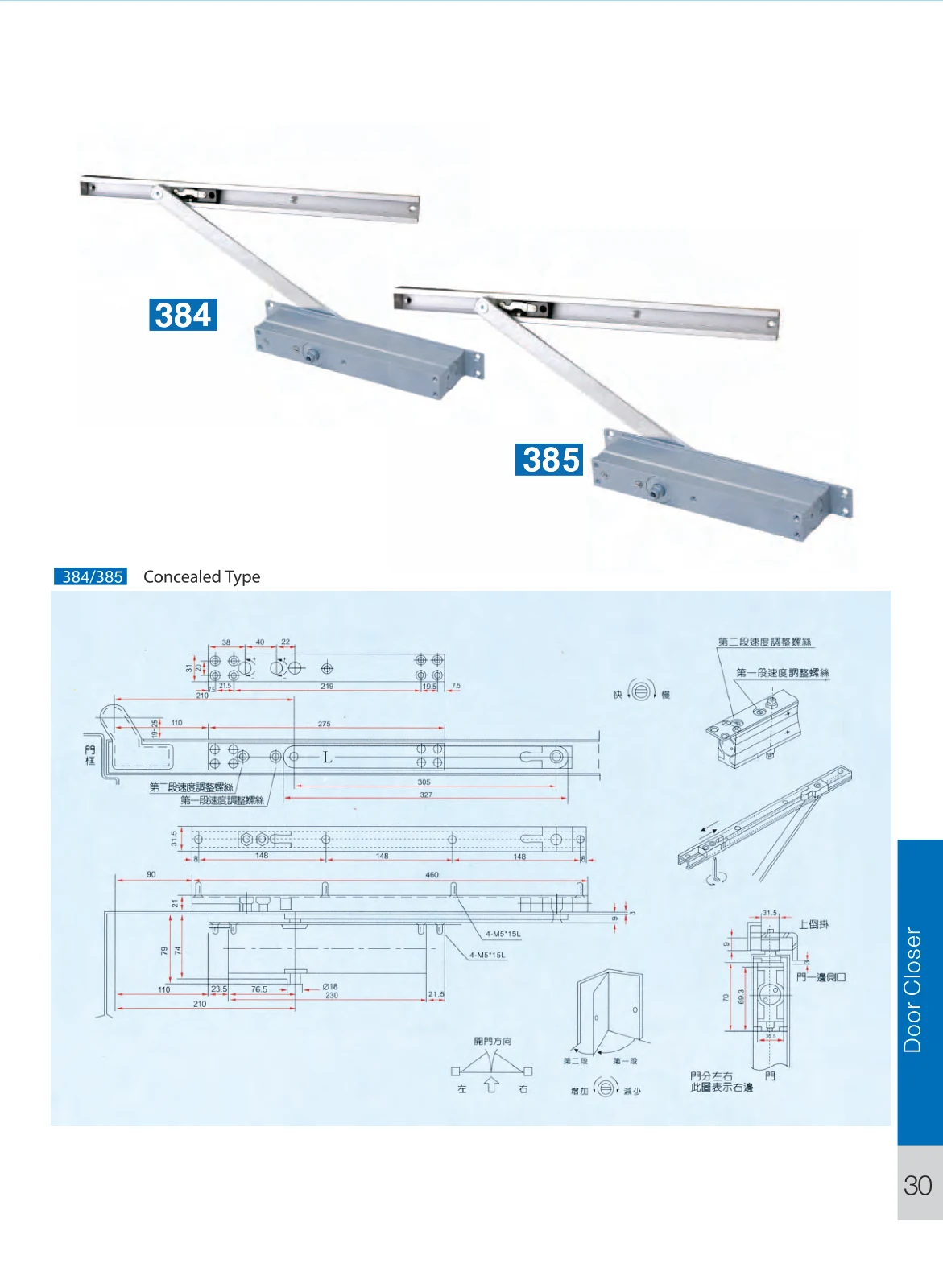

The catalog page provides dimensional installation drawings, speed adjustment screw positions and left/right door direction notes for project coordination.
Applications
Buyer Advantages
Concealed installation supports cleaner architectural door appearance
Four-model range helps match door weight and door width requirements
Useful option where visible surface-mounted closers are not wanted
Installation drawings support coordination with door and frame preparation
Can be supplied with matching locks, hinges, exit devices and door packages
