982 / 983 / 984 / 985 Slim Door Closer Series
The 982 / 983 / 984 / 985 Slim Door Closer Series is shown in the Tongguan catalog as a slim type door closer family for project doors. The series covers door leaf widths from 800mm to 1250mm, door weight ranges from 15kg to 120kg, and two-stage adjustable speed control for practical site tuning.
What buyers need to know first
Hardware buyers usually compare door type, opening size, fire rating, finish and access-control compatibility before asking for price.
Slim Model Range

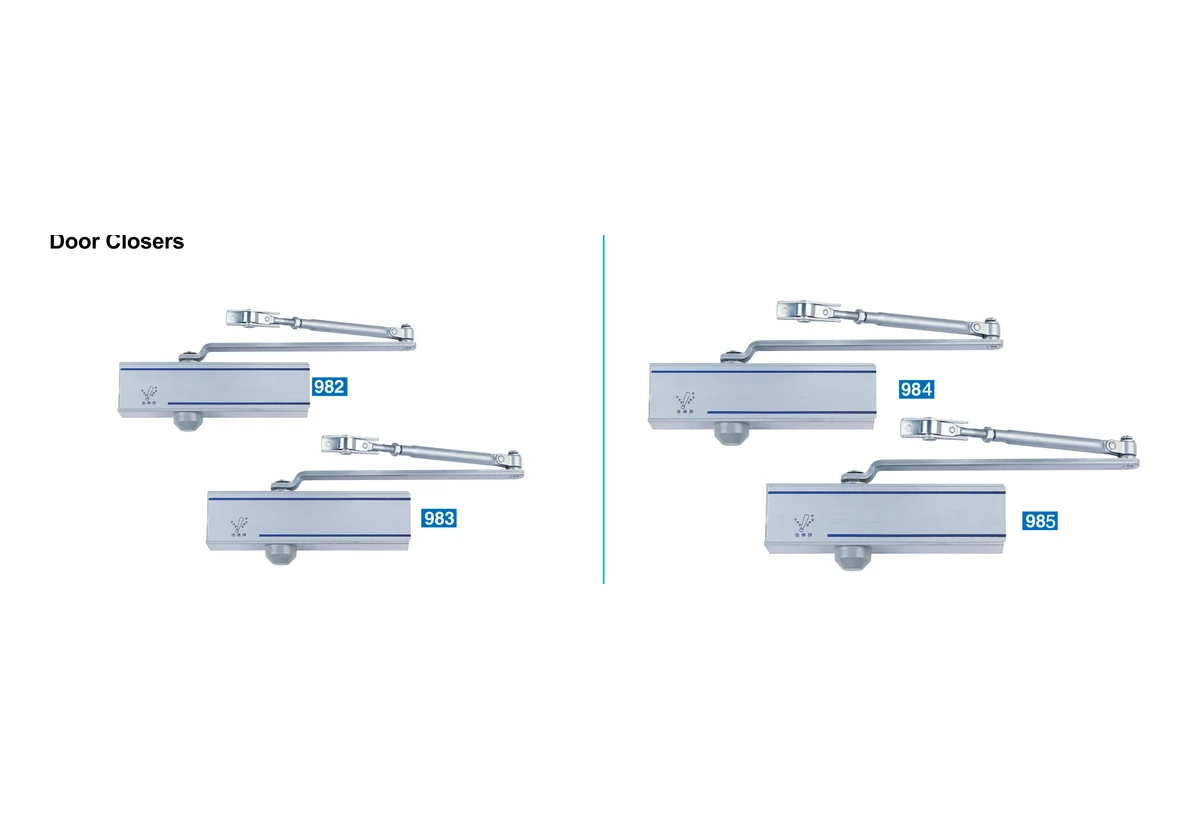

The catalog groups models 982, 983, 984 and 985 as slim type door closers, giving buyers a stepped model range for different door widths and weights.
Two-Stage Speed Adjustment

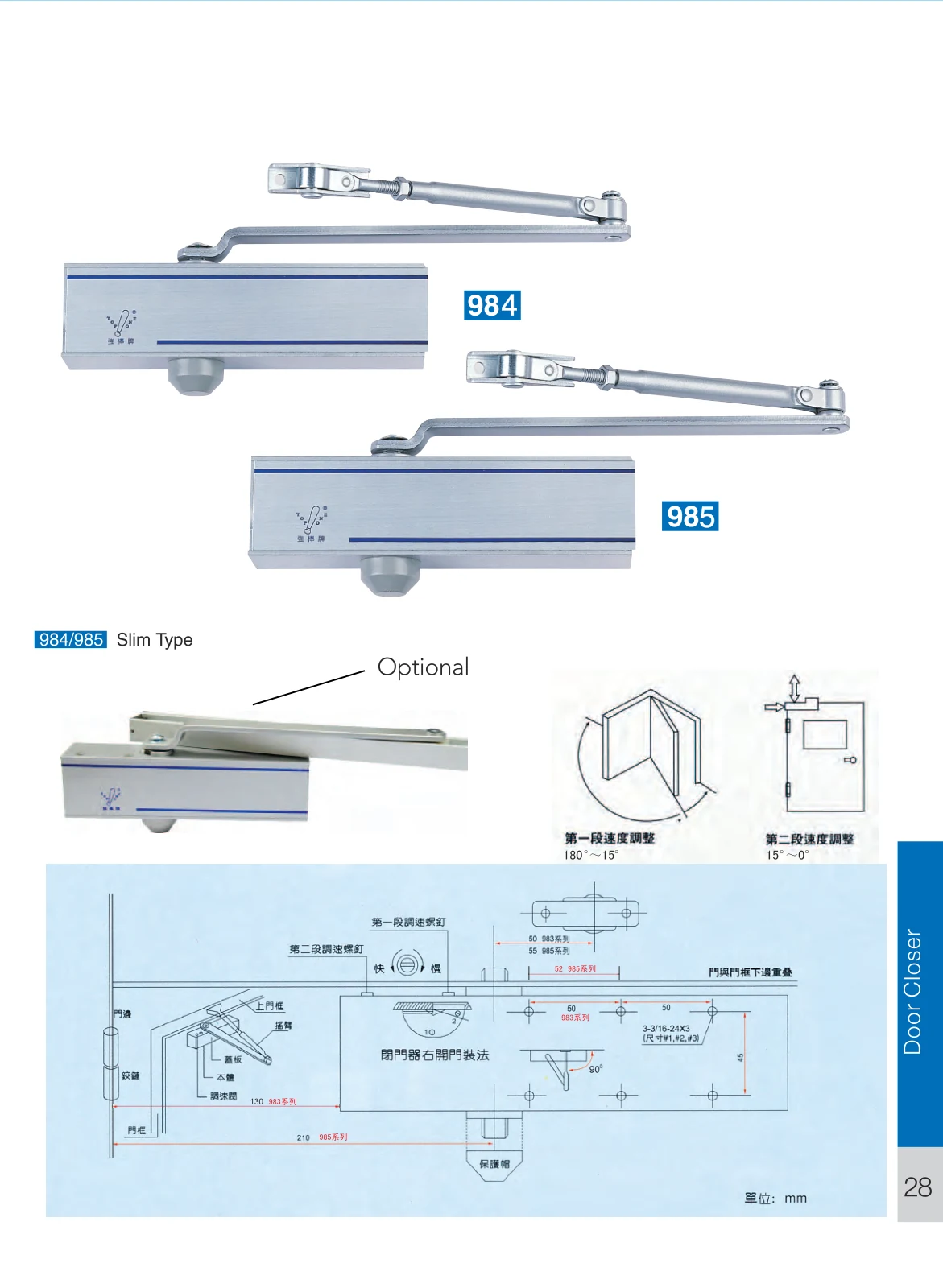

The speed governing column lists two-stage adjustable speed. The installation diagram shows first-stage speed adjustment from 180 degrees to 15 degrees and second-stage speed adjustment from 15 degrees to 0 degrees.
Construction Notes

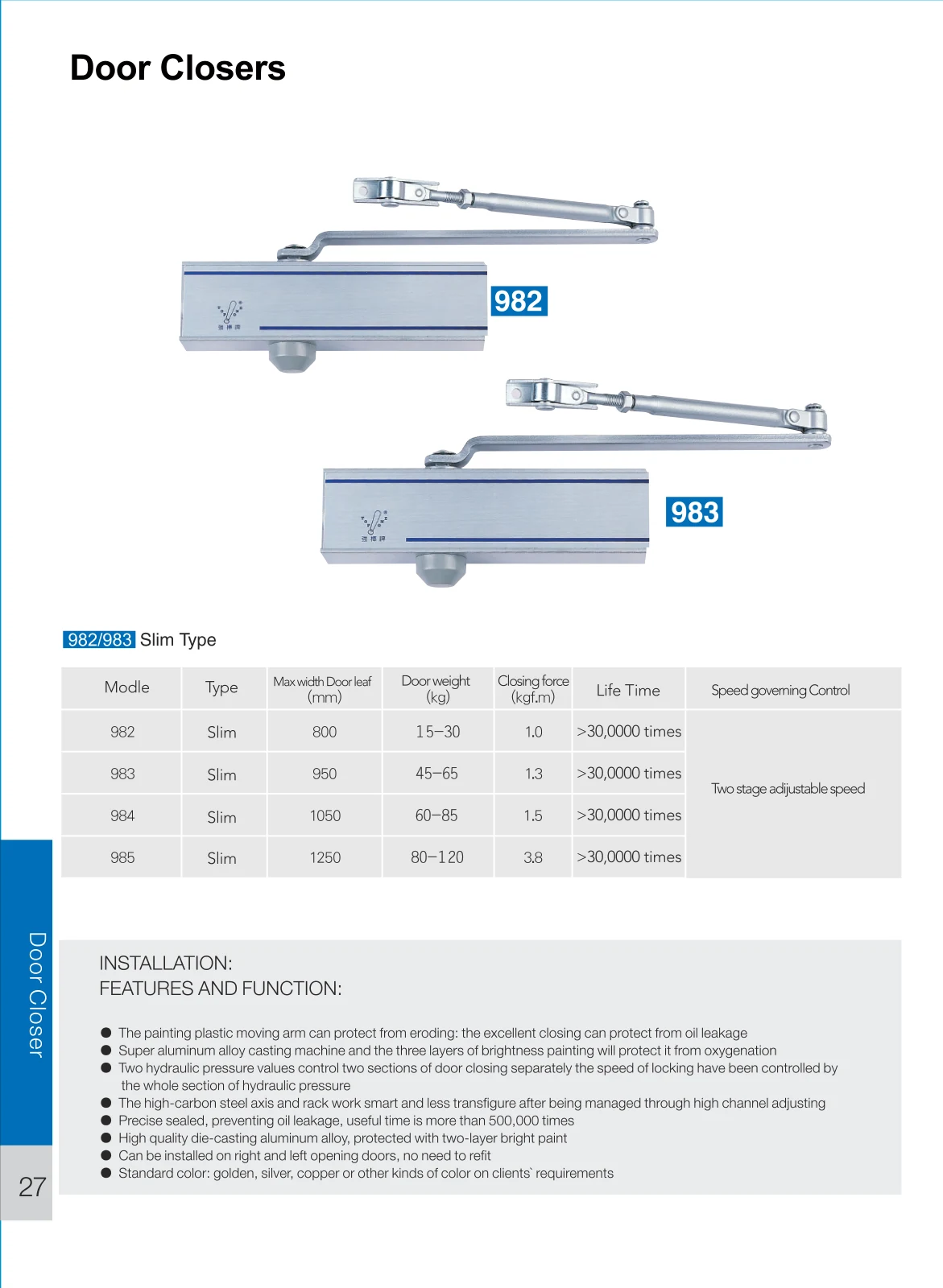

The catalog feature notes mention a plastic moving arm, die-casting aluminum alloy body, sealed structure to help prevent oil leakage, high-carbon steel axis and rack work, and hydraulic pressure valves for separate speed control.
Applications
Buyer Advantages
Four-model slim series covers light to heavier door closer requirements
Slim body appearance helps match commercial interior hardware schedules
Two-stage speed adjustment supports practical site tuning
Model table makes door width and door weight selection straightforward
Can be supplied with locks, hinges, exit devices and complete door packages
