F6600 Series Fire Rated Exit Device
The F6600 Series is a fire rated exit device for double leaf doors using two vertical rod type exit devices. The catalog lists stainless steel and steel painted versions, half-length and full-length configurations, 1045mm standard length and a 2100mm standard door height reference.
What buyers need to know first
Hardware buyers usually compare door type, opening size, fire rating, finish and access-control compatibility before asking for price.
Double Leaf Vertical Rod System
The F6600 series is designed for double leaf door openings and uses two vertical rod type exit devices for paired door egress applications.

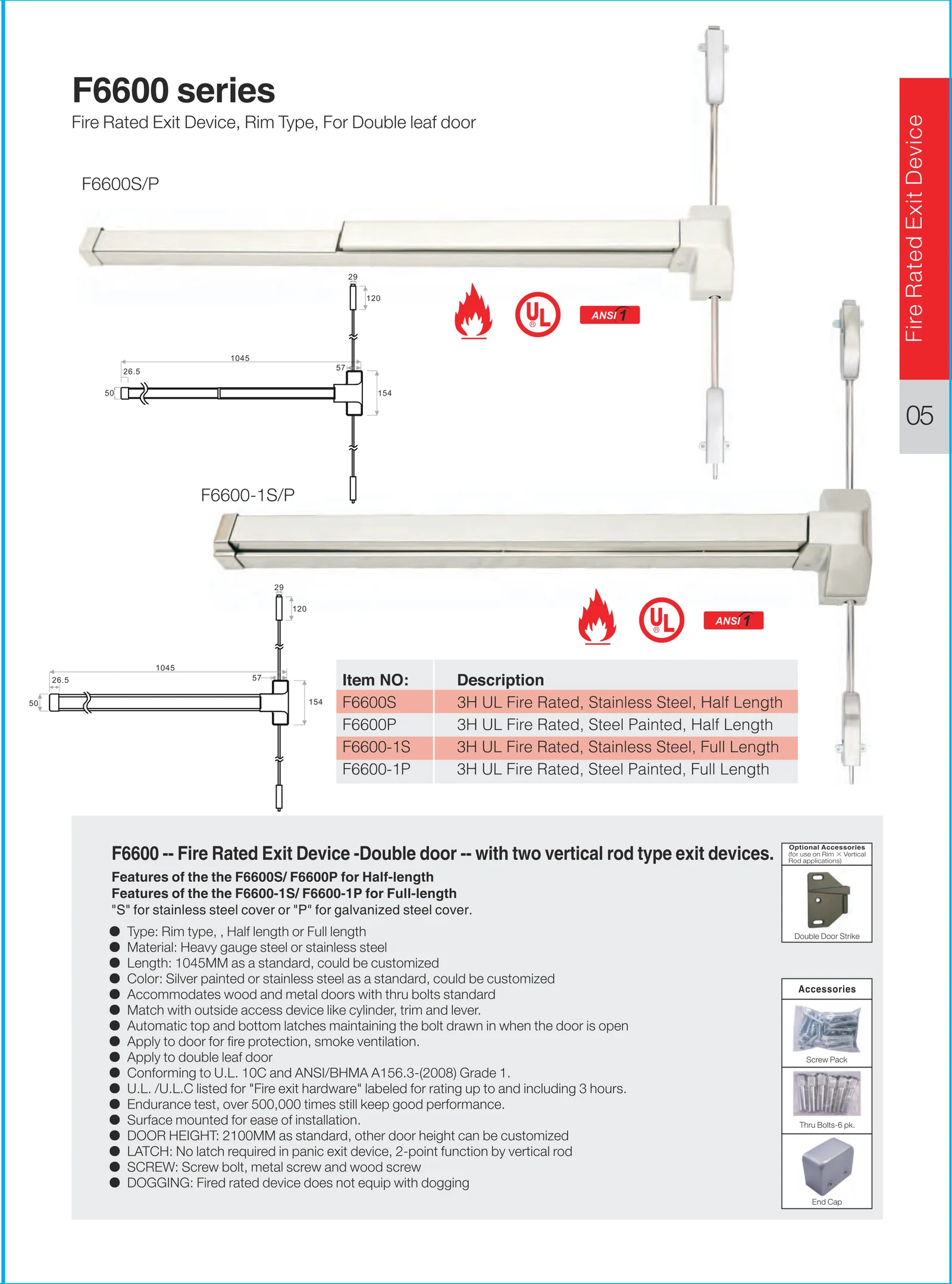

Fire Rated Model Table
The catalog lists F6600S and F6600P half-length models, plus F6600-1S and F6600-1P full-length models, all described as 3H UL fire rated versions.
Latch and Door Height Notes
The catalog notes automatic top and bottom latches, a 2100mm standard door height reference and 2-point function by vertical rod.
Applications
Buyer Advantages
Designed for double leaf fire exit openings
Vertical rod configuration supports paired door egress requirements
Half-length and full-length versions cover different project preferences
Can coordinate with outside access trim and standard accessories
Catalog model table gives buyers a clear stainless or painted selection path
Related Hardware
8000 Series Fire Rated Exit Device
Rim type fire rated exit device for single and double leaf doors with UL/ULC listing and ANSI Grade 1 performance
F5000 Series Fire Rated Exit Device
Rim type fire rated exit device for single leaf doors, available in half-length and full-length versions
F5600 Series Fire Rated Exit Device
Rim type double leaf fire rated exit device with vertical rod function and 3-hour UL fire exit hardware listing
Frequently Asked Questions About Door Hardware
What types of door hardware can SNRIDA supply?
SNRIDA can supply door hardware across several catalog groups, including panic exit devices, door closers, floor hinges, locks, handles, patch fittings and matching accessories. Each product page lists the catalog series, the door applications it is shown for, and the available material and finish options. Buyers should review the relevant product page for the model in scope before sending a quotation request.
Can door hardware be matched with different door types?
Yes. The hardware models in the SNRIDA catalog are reviewed against door type, leaf configuration, opening size, material and finish to confirm matching. Buyers should share the door type (for example single leaf, double leaf, wood, metal, fire exit or security door), the leaf dimensions and the planned finish so the export team can confirm the correct hardware selection before production.
What information is needed for a hardware quotation?
Please provide the product name or slug, the quantity, the door type and leaf dimensions, the preferred model and finish, the destination country, and any project drawings or hardware schedules that already exist. If the hardware is being matched with a specific door, fire door or security door order, please mention the related project reference so the hardware quotation can be confirmed against the same configuration.
Can hardware openings or installation details be prepared before shipment?
Yes. Thru-bolt positions, opening direction, hold-open or non-hold-open selection and other installation details can be reviewed against the approved drawings before shipment. Buyers should confirm the hardware model, opening direction, hold-open requirement and any on-site installation constraints before production so the configuration is built in from the start.
Can SNRIDA provide available certificates or test reports where applicable?
Depending on the project requirement and the specific hardware model selected, SNRIDA can provide product specifications, technical drawings, packing details and available certificates or test reports where applicable. Buyers should confirm required documents with their contractor, consultant or customs broker before shipment.
What should buyers confirm before ordering door hardware?
Buyers should confirm the hardware model and series, the door type and leaf dimensions, the finish tone, opening direction, hold-open or non-hold-open requirement, the accessory package (cylinder, trim, lever, arm type, mounting accessories) and the destination market. Production is started only after the configuration is approved against the project drawings and the related door order, if any.
