Fire Rated Roller Shutter
The Fire Rated Roller Shutter is a fire separation system for large openings in commercial, public and industrial buildings. The product group includes steel fire and smoke shutters, steel super fire shutters with water-mist protection, and inorganic super fire shutters in double-track double-curtain or folding configurations.
Key Features
- Steel fire and smoke roller shutter composite system

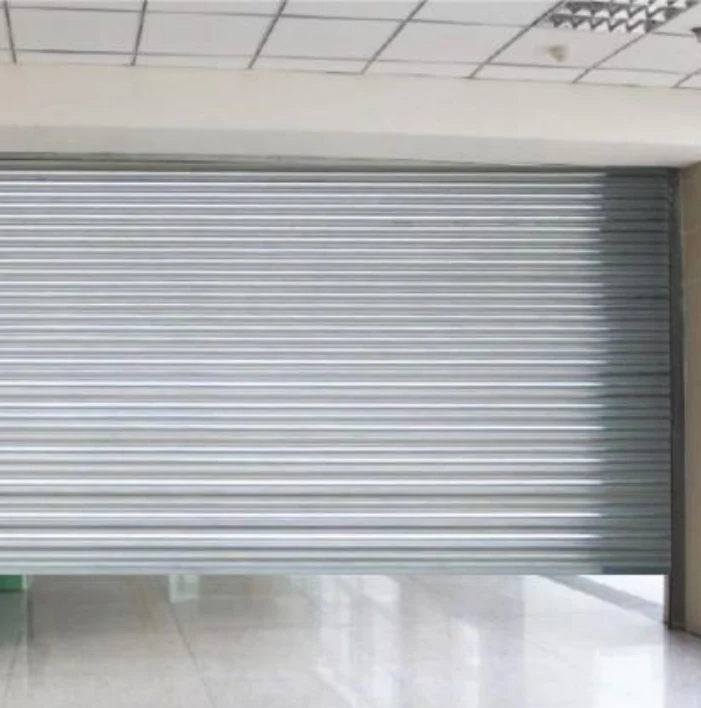

- Steel super fire rated roller shutter with water-mist configuration

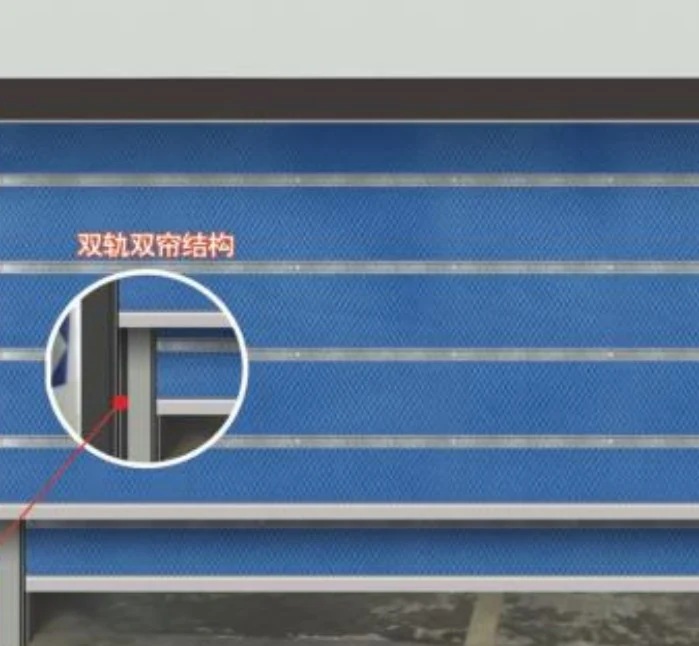

- Inorganic super fire rated roller shutter with double-track double-curtain structure

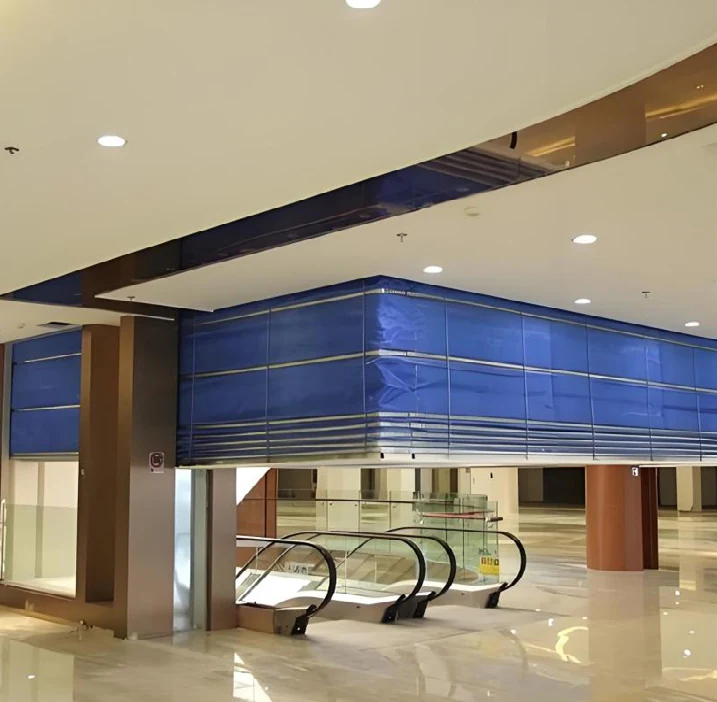

- Inorganic super fire rated folding roller shutter option
- Integrated motor, controller, smoke detector, heat detector and thermal release device
- Fire resistance grade up to 240min for inorganic super fire shutter options
Product Overview
Multiple Fire Shutter Configurations
The product group covers steel composite fire and smoke shutters, water-mist steel super fire shutters, inorganic double-track double-curtain shutters and inorganic folding shutters for different opening conditions.
Integrated Fire Control Components
Typical configurations include fire shutter motor, fire shutter controller, point-type photoelectric smoke detector, point-type heat detector and temperature-control release device.
High-Rating Inorganic Shutter Options
Inorganic super fire shutter options use decorative fireproof fabric and buried guide rails, with a listed fire resistance grade of four hours, 240min.
Applications
Shopping malls
Underground garages
Industrial workshops
Warehouses
Large fire compartment openings
Public building atriums and escalator areas
Product Views
Our Advantages
Covers multiple fire shutter structures for different large openings
Integrated detection and control components support fire system linkage
Steel and inorganic curtain options meet different fire separation requirements
Water-mist configuration available for enhanced fire protection design
Suitable for malls, garages, workshops and public fire compartment openings
Technical Data
| Product Type | Fire rated roller shutter |
| Steel Composite Curtain Panel | 0.8mm galvanized steel plate |
| Steel Super Fire Curtain Panel | 1.0mm galvanized steel plate |
| Guide Rail | Buried type, 1.5mm galvanized steel plate |
| Insulation Material | Aluminum silicate fiber felt, 10mm thickness |
| Inorganic Curtain Fabric | Decorative fireproof fabric, 0.25mm thickness |
| Fire Resistance Grade | Up to 240min for inorganic super fire shutter options |
| Control Components | Motor, controller, smoke detector, heat detector, thermal release device |
| Water-Mist Components | Spray pipe and solenoid valve available for water-mist type |
Packaging
Project-based export packaging according to opening size, curtain type, guide rail, motor and control configuration
