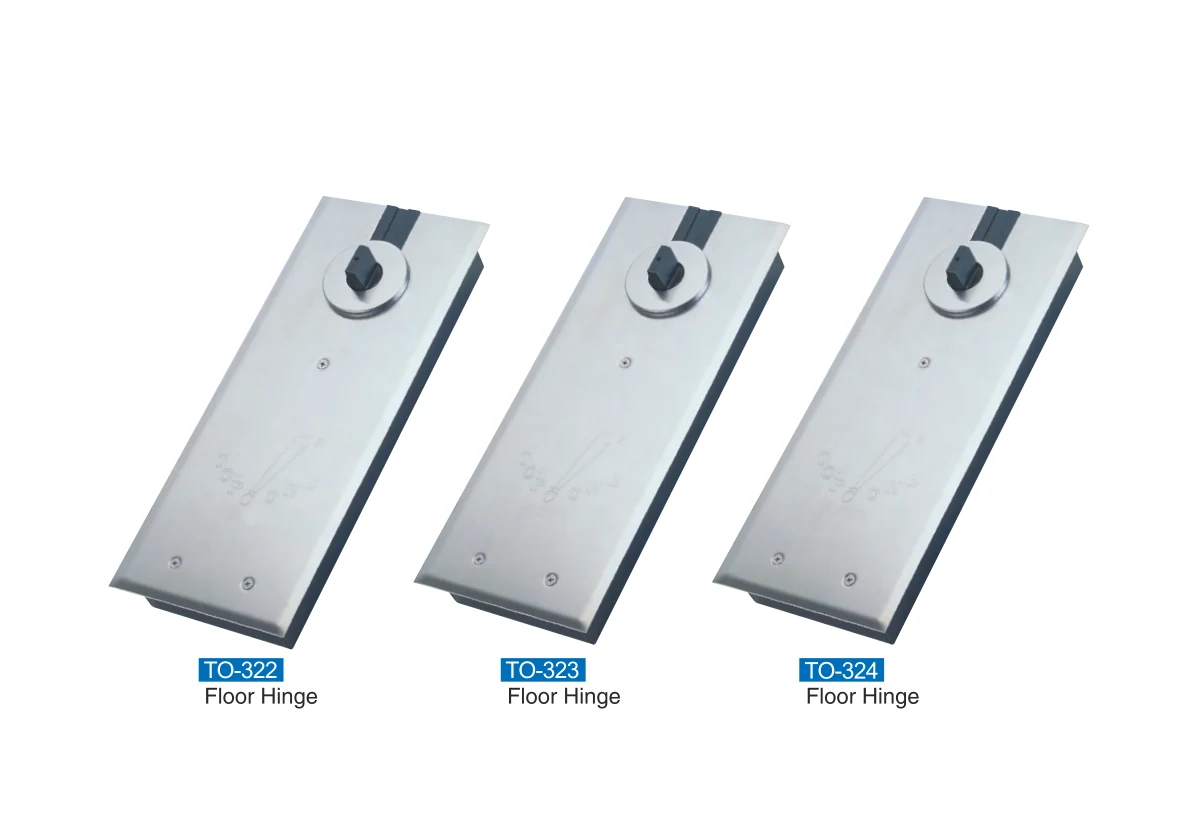

TO-322 / TO-323 / TO-324 Floor Hinge Series
The TO-322 / TO-323 / TO-324 Floor Hinge Series is shown in the Tongguan catalog for floor hinge door applications with 90 degree hold-open function. The series covers maximum door leaf widths from 1050mm to 1250mm and door weight ranges from 80kg to 180kg, with installation drawings for floor hinge and eccentric pivot hinge coordination.
What buyers need to know first
Hardware buyers usually compare door type, opening size, fire rating, finish and access-control compatibility before asking for price.
Three-Model Floor Hinge Range

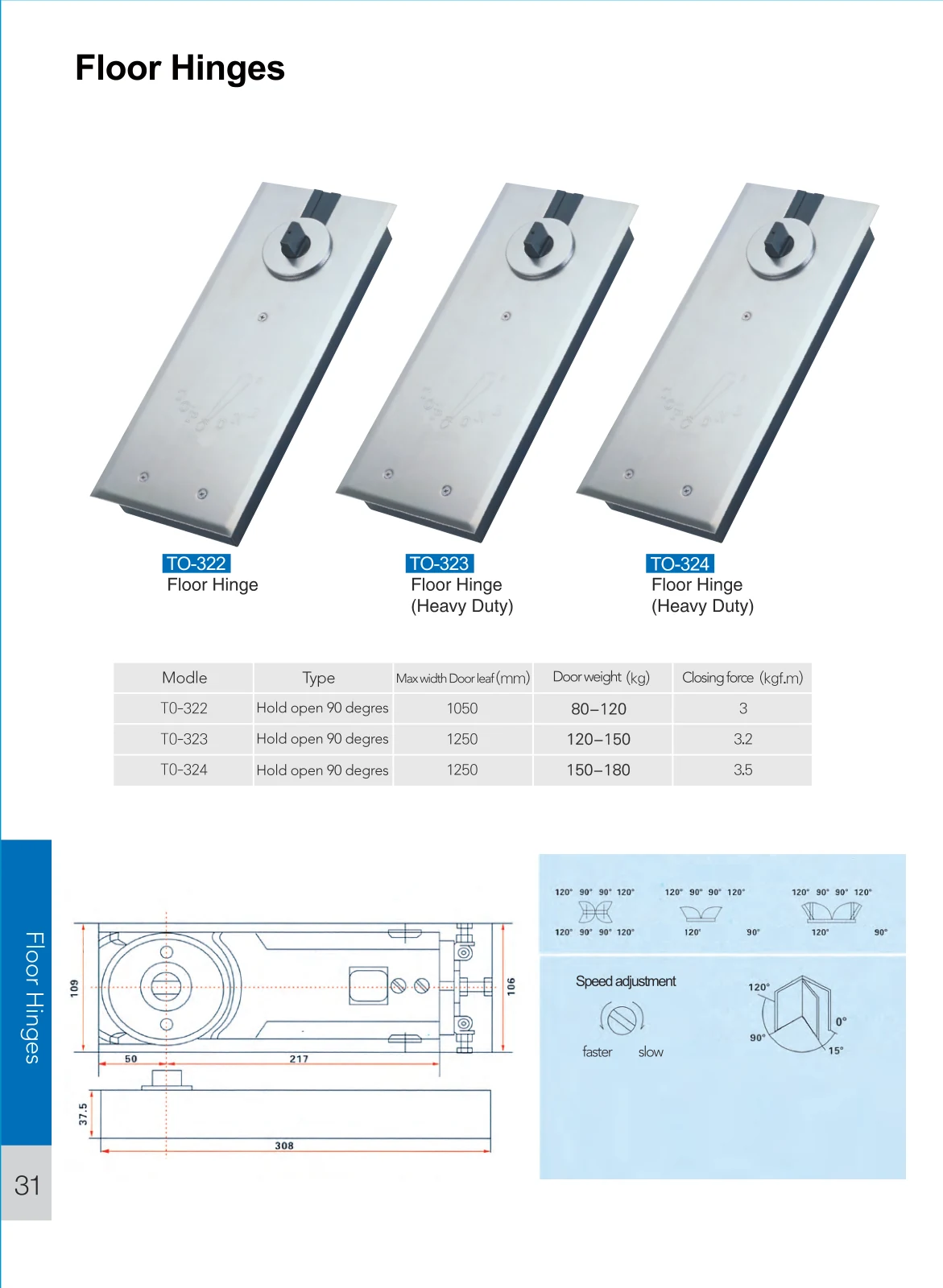

The catalog presents TO-322, TO-323 and TO-324 as floor hinge models with stepped door width, door weight and closing force values for different project openings.
Hold-Open Function
All three models are listed as hold-open 90 degree type, suitable where the project requires the door to stay open at the specified angle.
Installation Drawing Support

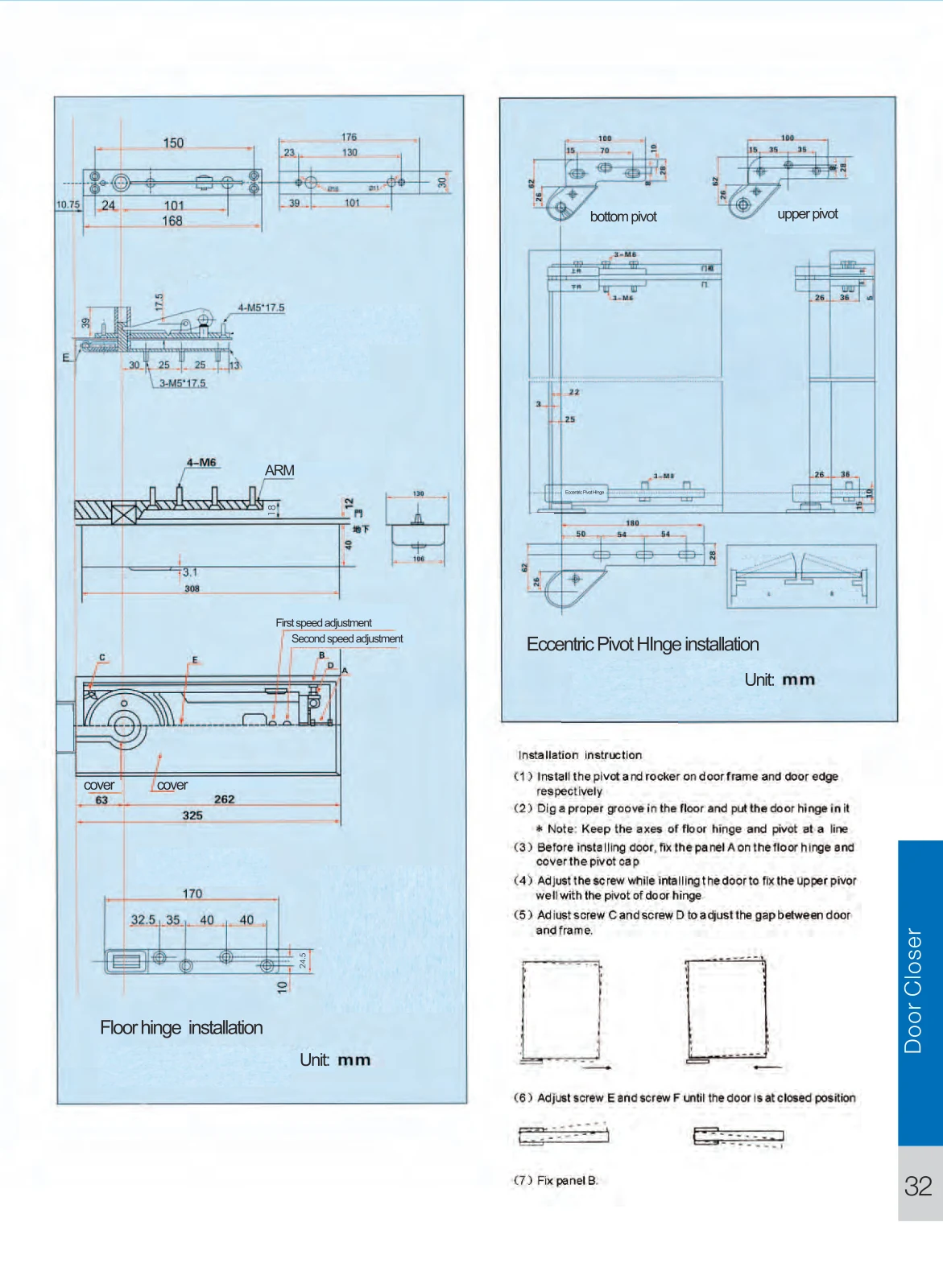

The page includes floor hinge installation drawings, speed adjustment reference, eccentric pivot hinge installation drawings and installation instruction notes with millimeter dimensions.
Applications
Buyer Advantages
Three-model range supports heavier floor hinge door schedules
90 degree hold-open function suits commercial entrance applications
Door weight range up to 180kg for heavy door projects
Installation drawings support floor and pivot coordination
Can be supplied with matching glass door patch fittings, locks and other hardware packages
Related Hardware
8000 Series Fire Rated Exit Device
Rim type fire rated exit device for single and double leaf doors with UL/ULC listing and ANSI Grade 1 performance
F5000 Series Fire Rated Exit Device
Rim type fire rated exit device for single leaf doors, available in half-length and full-length versions
F5600 Series Fire Rated Exit Device
Rim type double leaf fire rated exit device with vertical rod function and 3-hour UL fire exit hardware listing
Frequently Asked Questions About Door Hardware
What types of door hardware can SNRIDA supply?
SNRIDA can supply door hardware across several catalog groups, including panic exit devices, door closers, floor hinges, locks, handles, patch fittings and matching accessories. Each product page lists the catalog series, the door applications it is shown for, and the available material and finish options. Buyers should review the relevant product page for the model in scope before sending a quotation request.
Can door hardware be matched with different door types?
Yes. The hardware models in the SNRIDA catalog are reviewed against door type, leaf configuration, opening size, material and finish to confirm matching. Buyers should share the door type (for example single leaf, double leaf, wood, metal, fire exit or security door), the leaf dimensions and the planned finish so the export team can confirm the correct hardware selection before production.
What information is needed for a hardware quotation?
Please provide the product name or slug, the quantity, the door type and leaf dimensions, the preferred model and finish, the destination country, and any project drawings or hardware schedules that already exist. If the hardware is being matched with a specific door, fire door or security door order, please mention the related project reference so the hardware quotation can be confirmed against the same configuration.
Can hardware openings or installation details be prepared before shipment?
Yes. Thru-bolt positions, opening direction, hold-open or non-hold-open selection and other installation details can be reviewed against the approved drawings before shipment. Buyers should confirm the hardware model, opening direction, hold-open requirement and any on-site installation constraints before production so the configuration is built in from the start.
Can SNRIDA provide available certificates or test reports where applicable?
Depending on the project requirement and the specific hardware model selected, SNRIDA can provide product specifications, technical drawings, packing details and available certificates or test reports where applicable. Buyers should confirm required documents with their contractor, consultant or customs broker before shipment.
What should buyers confirm before ordering door hardware?
Buyers should confirm the hardware model and series, the door type and leaf dimensions, the finish tone, opening direction, hold-open or non-hold-open requirement, the accessory package (cylinder, trim, lever, arm type, mounting accessories) and the destination market. Production is started only after the configuration is approved against the project drawings and the related door order, if any.
