Glass Door Patch Fitting Series

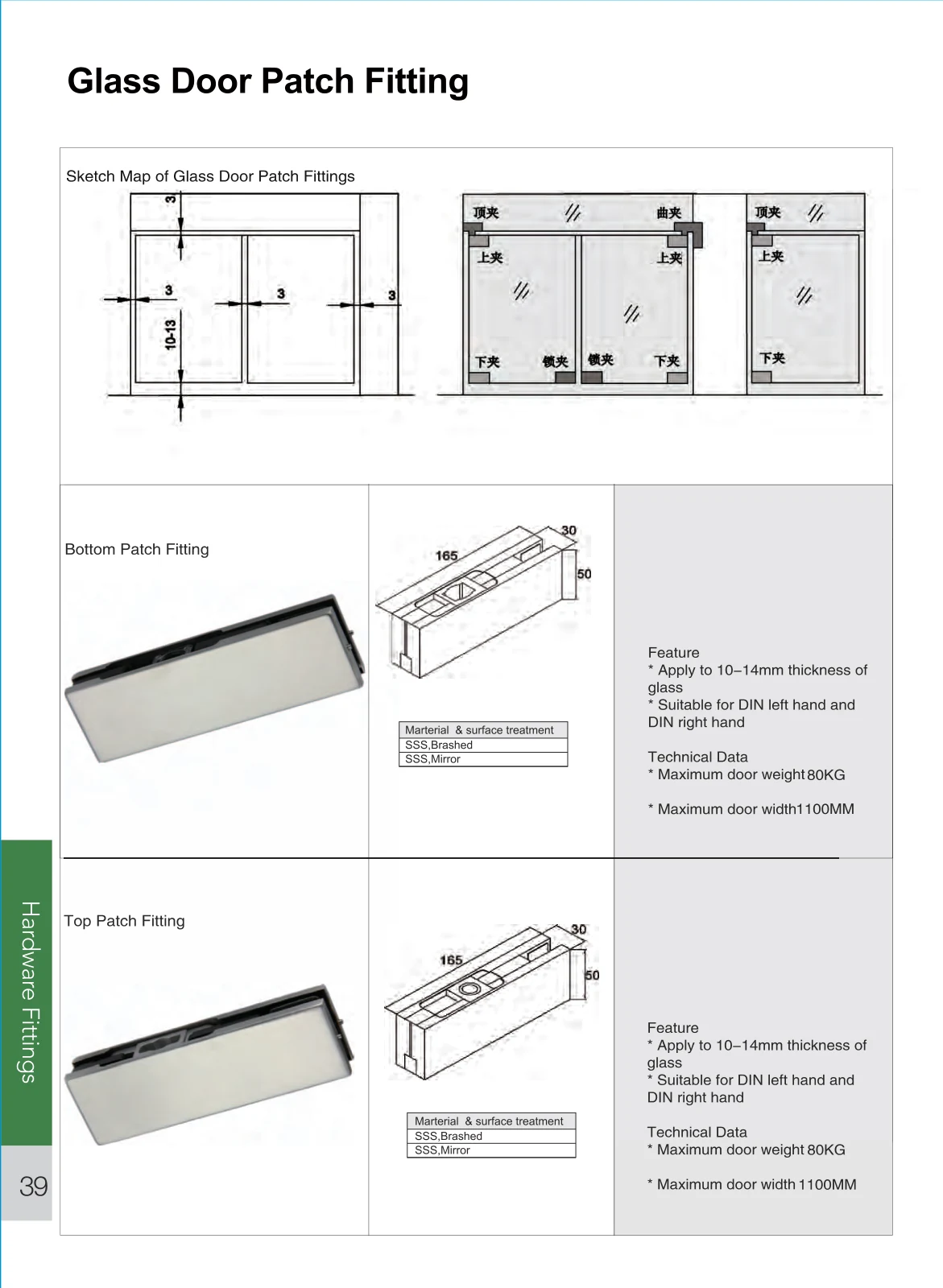

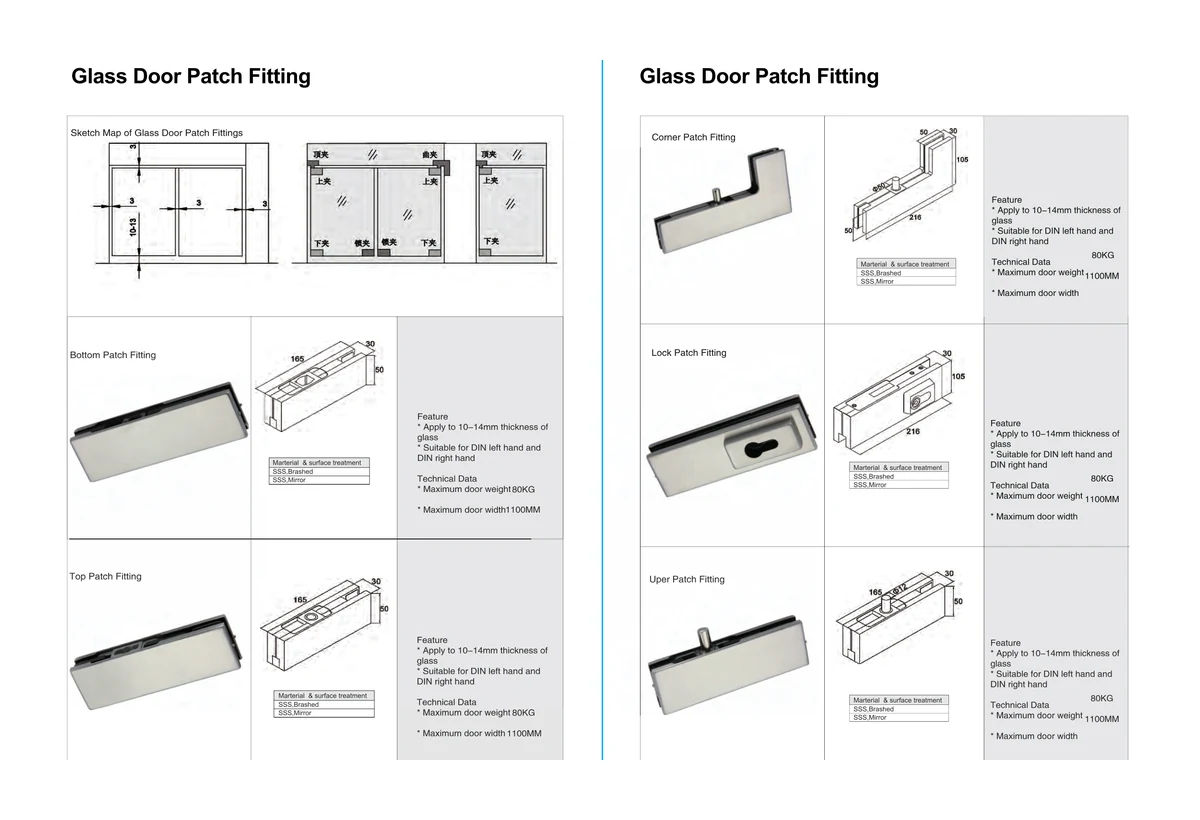

The Glass Door Patch Fitting Series is shown in the Tongguan catalog for glass door systems. The page includes bottom patch fitting, top patch fitting, corner patch fitting, lock patch fitting and upper patch fitting options, with sketch maps for typical glass door arrangements and shared technical data for 10-14mm glass, 80kg maximum door weight and 1100mm maximum door width.
What buyers need to know first
Hardware buyers usually compare door type, opening size, fire rating, finish and access-control compatibility before asking for price.
Patch Fitting Range

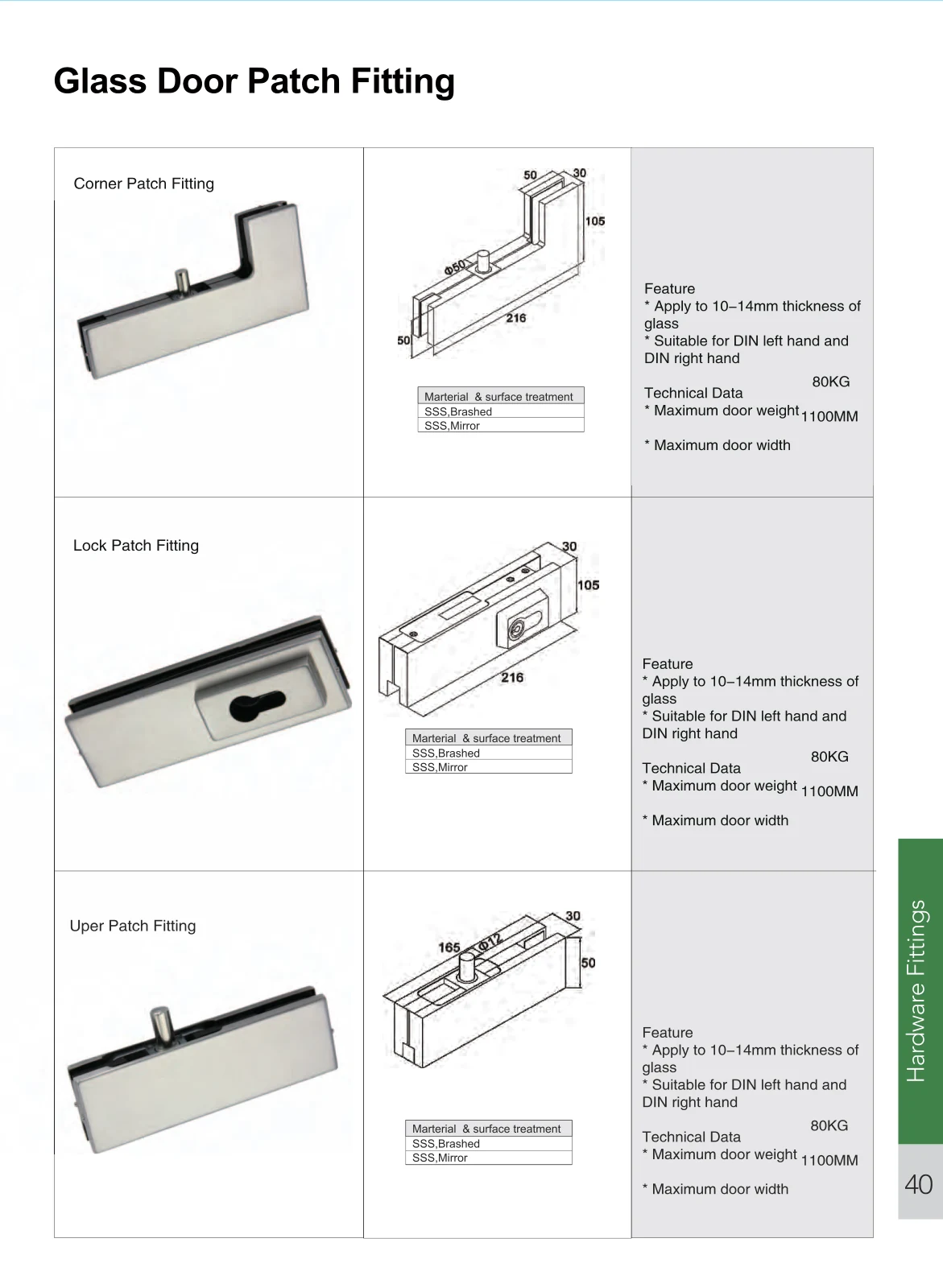

The catalog page shows bottom, top, corner, lock and upper patch fittings, allowing buyers to specify multiple hardware positions for a complete glass door opening.
Glass Door Arrangement
The sketch map illustrates how patch fittings are positioned on single and double glass door arrangements, with 3mm and 10-13mm reference clearances shown.
Shared Technical Data
The visible technical notes list 10-14mm glass thickness, DIN left and DIN right hand suitability, 80kg maximum door weight and 1100mm maximum door width.
Applications
Buyer Advantages
Covers the main patch fitting positions needed for glass door hardware packages
Shared technical data simplifies selection across the fitting series
SSS brushed and mirror finishes support common glass door project requirements
DIN left and right hand suitability helps export project matching
Can be supplied with floor hinges, bottom clamps, locks and complete glass door hardware sets
Related Hardware
8000 Series Fire Rated Exit Device
Rim type fire rated exit device for single and double leaf doors with UL/ULC listing and ANSI Grade 1 performance
F5000 Series Fire Rated Exit Device
Rim type fire rated exit device for single leaf doors, available in half-length and full-length versions
F5600 Series Fire Rated Exit Device
Rim type double leaf fire rated exit device with vertical rod function and 3-hour UL fire exit hardware listing
Frequently Asked Questions About Door Hardware
What types of door hardware can SNRIDA supply?
SNRIDA can supply door hardware across several catalog groups, including panic exit devices, door closers, floor hinges, locks, handles, patch fittings and matching accessories. Each product page lists the catalog series, the door applications it is shown for, and the available material and finish options. Buyers should review the relevant product page for the model in scope before sending a quotation request.
Can door hardware be matched with different door types?
Yes. The hardware models in the SNRIDA catalog are reviewed against door type, leaf configuration, opening size, material and finish to confirm matching. Buyers should share the door type (for example single leaf, double leaf, wood, metal, fire exit or security door), the leaf dimensions and the planned finish so the export team can confirm the correct hardware selection before production.
What information is needed for a hardware quotation?
Please provide the product name or slug, the quantity, the door type and leaf dimensions, the preferred model and finish, the destination country, and any project drawings or hardware schedules that already exist. If the hardware is being matched with a specific door, fire door or security door order, please mention the related project reference so the hardware quotation can be confirmed against the same configuration.
Can hardware openings or installation details be prepared before shipment?
Yes. Thru-bolt positions, opening direction, hold-open or non-hold-open selection and other installation details can be reviewed against the approved drawings before shipment. Buyers should confirm the hardware model, opening direction, hold-open requirement and any on-site installation constraints before production so the configuration is built in from the start.
Can SNRIDA provide available certificates or test reports where applicable?
Depending on the project requirement and the specific hardware model selected, SNRIDA can provide product specifications, technical drawings, packing details and available certificates or test reports where applicable. Buyers should confirm required documents with their contractor, consultant or customs broker before shipment.
What should buyers confirm before ordering door hardware?
Buyers should confirm the hardware model and series, the door type and leaf dimensions, the finish tone, opening direction, hold-open or non-hold-open requirement, the accessory package (cylinder, trim, lever, arm type, mounting accessories) and the destination market. Production is started only after the configuration is approved against the project drawings and the related door order, if any.
