Steel-Wood Fire Rated Door
The Steel-Wood Fire Rated Door uses a galvanized steel door frame with a flame-retardant wood door leaf skeleton and panel. The door leaf is filled with non-toxic fire and thermal insulation material and matched with fire rated hardware to provide reliable fire performance with a warmer wood appearance.
Key Features
- Galvanized steel frame with one-piece formed structure
- Flame-retardant wood door leaf skeleton and panel
- 3mm paint-free board door leaf panel
- Independently developed fire-resistant core material
- Multiple surface treatments including powder coating, wood grain transfer and stainless steel
- Fire integrity options of 90min, 60min and 30min
Product Overview
Steel Frame with Wood Door Leaf
The product combines a galvanized steel frame with a flame-retardant wood door leaf structure, giving the door reliable fire performance while keeping a warmer interior appearance.
Fire-Resistant Core and Hardware
The door leaf is filled with independently developed fire-resistant core material that is non-toxic and harmless, then matched with fire rated hardware accessories for a complete fire door assembly.
Multiple Surface Treatments
Surface treatments can include electrostatic powder coating, wood grain transfer and stainless steel finishes, supporting different project design requirements.
Applications
Fire exits
Commercial buildings
Office corridors
Residential public areas
Schools and hospitals
Interior fire compartment openings

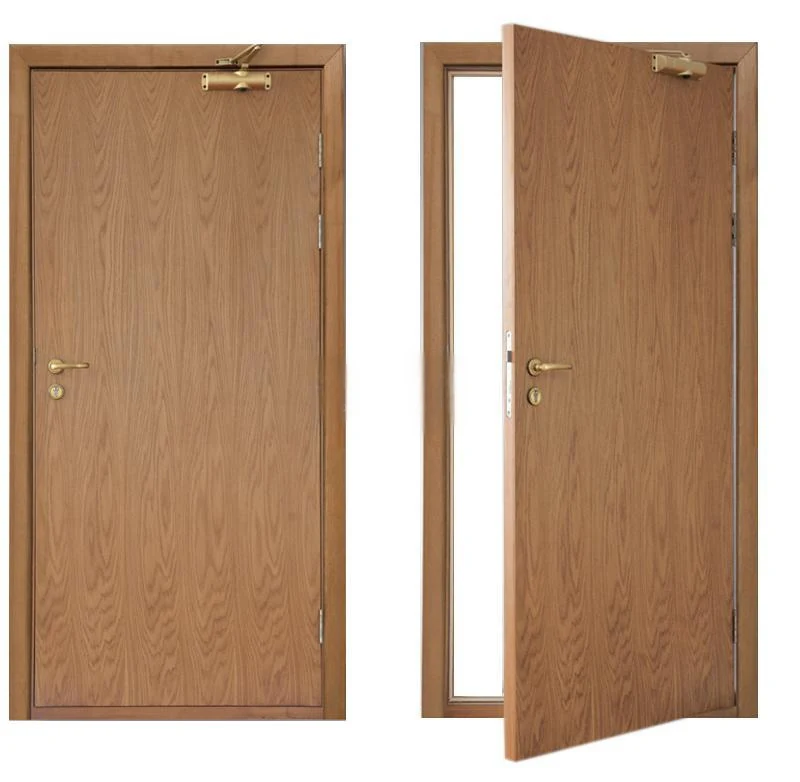

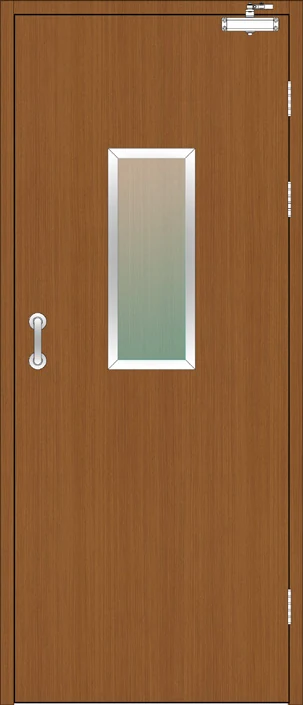

Product Views
Our Advantages
Warmer wood appearance with reliable fire door construction
Galvanized steel frame improves installation stability
Independently developed fire core supports fire integrity performance
Multiple fire integrity ratings for project requirements
Complies with GB12955-2024 Fire Doors standard
Technical Data
| Door Leaf Panel | 3mm paint-free board |
| Door Leaf Filling | Independently developed fire-resistant core material |
| Frame Material | 1.2-1.5mm galvanized steel plate |
| Frame Structure | One-piece formed structure |
| Hinge Plate | ≥3.0mm |
| Thermal Insulation | Grade 4 |
| Reinforcement Without Screw Holes | ≥1.2mm |
| Reinforcement With Screw Holes | ≥3.0mm |
| Surface Treatment | Electrostatic powder coating, wood grain transfer, stainless steel and other options |
| Fire Performance | Fire integrity ≥90min / ≥60min / ≥30min |
| Standard | GB12955-2024 Fire Doors |
Packaging
Standard export packaging according to door size, finish and hardware configuration
